Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: SMARTS
  • Model Number: SMT-024-040VW
  • Output Power: 40W
  • Output Type: Single, Single
  • Input Voltage: 100-265vac
  • Output Voltage: 24V
  • Output Frequency: 47-63Hz
  • Output Current: 1.67A
  • outer case: Alumium housing
  • waterproof rate: IP67
  • working mode: constant voltage type
  • efficiency: > 82%
  • warranty: 2 years warranty
  • size: 217*29*21mm
  • certificate: CE, RoHS approval
  • Protection: Over load, temp, short circuit protection
  • Product name: 24v 40w constant voltage led driver

Packaging & Delivery

Packaging Details 1pc/white box +50pcs /seaworthy carton packing for Constant Voltage 24v ac dc power supply 40w
Delivery Time Shipped in 7 days after payment

Constant Voltage 24v ac dc power supply 40w 220v 24v led transformer

Product Description

Product parameters:

model

    SMT-012-040VW

   SMT-024-040VW

        SMT-036-040VW

Output

DC Voltage

12V

24V

36V

Voltage Accuracy

±0.5V

±0.5V

±0.5V

Rated current

3.33A

1.67A

1.11A

Rated power

40W

Input

Voltage Range

100~265V AC

Frequency Range

47~63HZ

Full Load Efficiency(Typ.)

>82%

>82%

>82%

Leakage current

<0.25mA/110V/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes







Safety&EMC

Safety standards

EN-60950-1, EN61347-1 EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (>50%load)

EMC IMMUNITY

Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547

Alight industry level (surge4KV)

Others

Weight

205g

Size

 217*29*21mm(L*W*H)

packing

299*224*176mm , 50PCS/ctn

Notes

1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and

    25℃of ambient temperature.



2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted

    pair-wire terminated with a 0.1uf &47uf parallel capacitor.



3. Tolerance:includes set us tolerance,line regulation and load regulation .



Features:

  • High efficiency,save energy ,protected environment.
  • High stability and low ripple, increase light efficiency and decrease light attenuation.
  • Meet to safety standard and EMC
  • Assure LED stability long lift and light efficiency by constant voltage.
  • Protections:Short circuit/Overload/Over temperature
  • Cooling by free air convection
  • 100% full load burn-in test.
  • Suitable for LED lighting

Application:

  • indoor LED illuminating lights, LED Neon
  • LED urban Decoration,LED Lighting Advertising
  • LED Display, Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels
Related Product

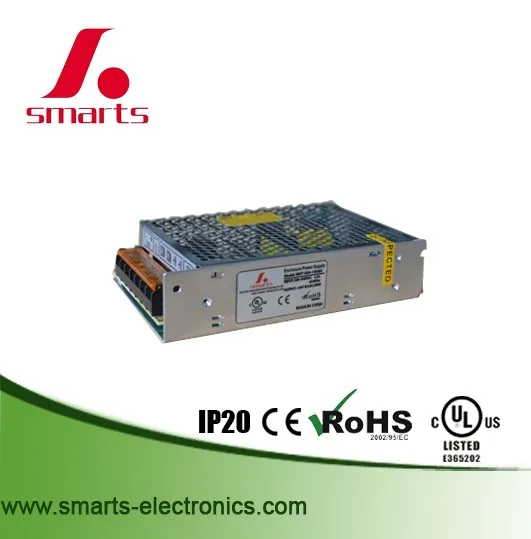

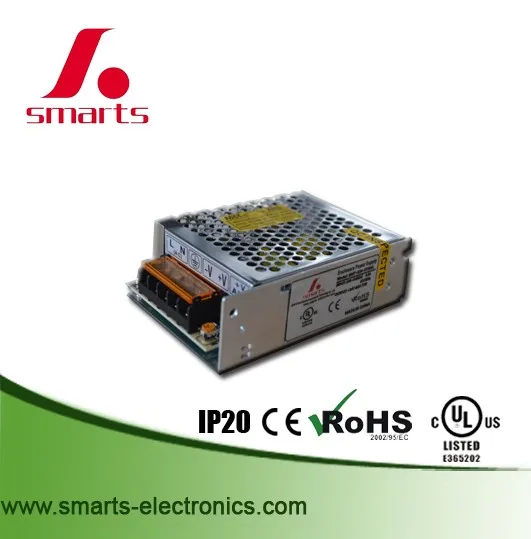

What's the series of  power supply do you have???

Answer: We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.
Packaging & Shipping

what is the packing situation ??



MOQ: 1 PCS

Payment : T/T  Western union  Paypal  Credit Card

Delivery : within 7 working days for sample order ,  13 working days for 500pcs

Shipping term : FedEx  DHL  UPS  TNT  Air /Sea Transportation

Company Information

Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd??

1).  Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity power suppliers only.



2).  Most of our products are approved with ETL/CE  approval, our ETL file #5005044



3).  We give 2 years warranty



4).  We accept trial orders begining..



5). We  have an area of 2000 square meters factory,  about 300-500 production staff...



Website:  www.smarts-electronics.com

certifications:

CE, UL/CUL, FCC,ETL, ROHS approval.

factory & equipments view:



Our Market

our market

Our major markets are in EU & North America,it takes about 85% markets share. view transaction history



FAQ



Our service & FAQ



Q1.    What's the trade terms you can do??
A1:    We accept EXW,FOB..(Optional)

Q2.    What's shipping mode can we choose?
A2:    Express, Ocean and air transportation (optional).

Q3.    What's the MOQ?
A3:    Our MOQ is 10pcs. better price for large quantity;

Q4.    What can you do if the product is broken?
A4:    We promise to replace new ones to you if there is any defective happen during the warranty period.

Q5.    Can i get products with my own logo??
A5:    Sure, you can, MOQ is 500pcs.



Q6.    Can i get a sample for testing??
A6:    Sure, but sample fees should be charged on your account.

Q7.    What's the mormal lead time??
A7:    7 working days for samples, 15 working days for mass production.

Q8.    What's the payment conditon?
A8:    All are paid before production or 30% deposit and 70% before delivery (optional)

Q9.    What's the Payment do you have?
A9:    We accept payment be sent via T/T, L/C,  Trade Assurance, WESTERN UNION, PAYPAL.
