ETL FCC CE ROHS certified 12v 30w dali dimmable constant voltage mr16 led driver

FOB Reference Price:Get Latest Price
$19.00 - $22.00 / Pieces | 1 Piece/Pieces (Min. Order)
Output Voltage:
12V
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
SMARTS
Model Number:
SMT-012-030VM
Output Power:
30w
Output Type:
Single, Single
Input Voltage:
100-130v / 170-265vac
Output Frequency:
47-63Hz
Output Current:
2.5A
outer case:
plastic housing
waterproof rate:
IP20
input voltage:
100-130v / 170-265vac
working mode:
constant voltage type
efficiency:
> 87%
size:
140*45*28mm
warranty:
3 years warranty
certificate:
CE, ETL, FCC , RoHS approval
product name:
12v 30w dali dimming led driver for mr16 light
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month for 12v 30w dali dimmable led driver for mr16
Packaging & Delivery
Packaging Details
1pc/white box +30pcs/Standard Export Carton, packing for 12v 30w dali dimmable led driver for mr16
Port
xiamen
Video Description

ETL FCC CE ROHS certified 12v 30w dali dimmable constant voltage mr16 led driver



Product Description



Feature :

Output constant voltage

Range : 100-130v / 170-265vac

Built-in active PFC function, PF>0.9

Efficiency > 87%

Protections: short circuit/over load/ over current

Cooling by free air convection

IP40 design for indoor installation

Dimming function: Built in DALI interface dimming function conform to DALI Protocol IEC62386

Dimming range from 0.1% to 100%

Strong compatibility, flicker-free dimming

Suitable for LED lighting and moving sign applications

Compliance to worldwide safety regulations for lighting



Specification                                                   CE  ETL/CETL  FCC ROHS  SELV  IP20

Model

          SMT-012-030VM

 SMT-024-030VM

          SMT-036-030VM

output

DC Voltage

12V

24V

36V

Voltage Tolerance

±0.5V

Rated current

0~2.5A

0~1.25A

0~0.833A

Rated power

30W

input

Voltage Range

100~130 / 170-265VAC

Frequency Range

47~63HZ

Power Factor (Typ.)

PF0.92/110V  / PF0.95/220V

Efficiency(Typ.)

>87%

>87%

>86%

AC Current(Typ.)

0.17A

0.16A

0.15A

Leakage current

< 0.40mA/110VAC / < 0.50mA/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed

Over Loading

120%

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH, non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes







Safety&EMC

Safety standards

EN61347-1 EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

EN55015,EN61000-3-2,3 (50%loading)

EMC IMMUNITY

EN61000-4-2,3,4,5,6,11(Surge 4KV)

Others

Net.Weight

0.55Kg

Size

180*60*34mm(L*W*H)

packing

355*215*215mm/20pcs/CTN

Notes

1. All parameters NOT specially mentioned are measured at 110V / 220VAC input , rated load

    and  25℃of ambient temperature.



2. Tolerance: includes set us tolerance, line regulation and load regulation .



3. The power supply is considered as a component that will be operated in combination with final     Equipment. Since EMC performance will be affected by the complete installation, the final             equipment manufactures must be-qualify EMC Directive on the complete installation again

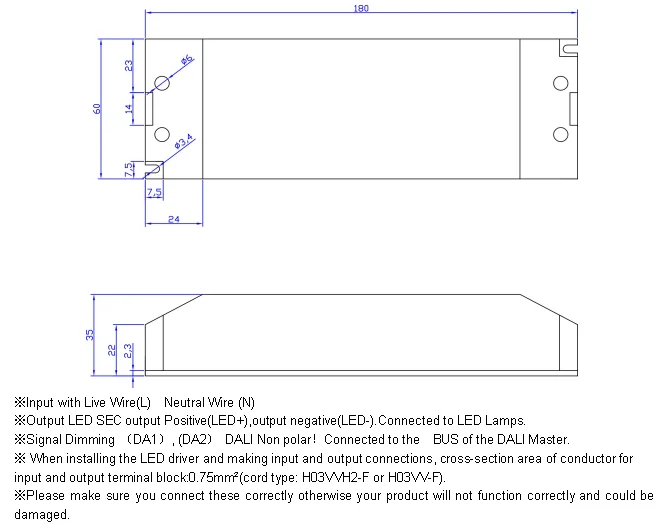

 Mechanical Specification



Dimming Operation

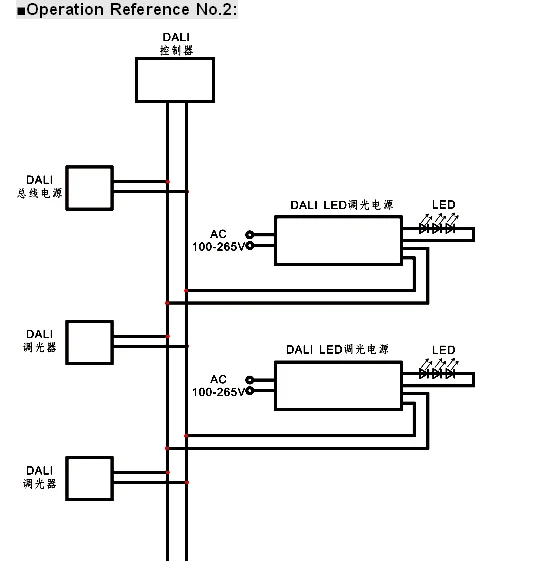

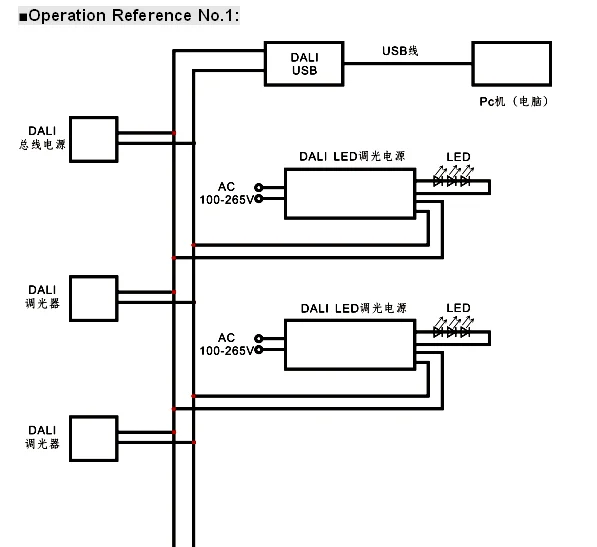

Connect the Dali signal line to the Dali bus of the controller (the Dali Master).

After Dali Master scanning and address assignment, the driver can be successfully dimmed.

Please refer to Diagram 1

Notice:In the market, some DALI controllers has bus-powered functions .If not,please add an extra power supply.(DALI Power).



Any incorrect connecting of signal line and output line would damage the master.







Image :
